Parallel long term tethered behavior system for Drosophila

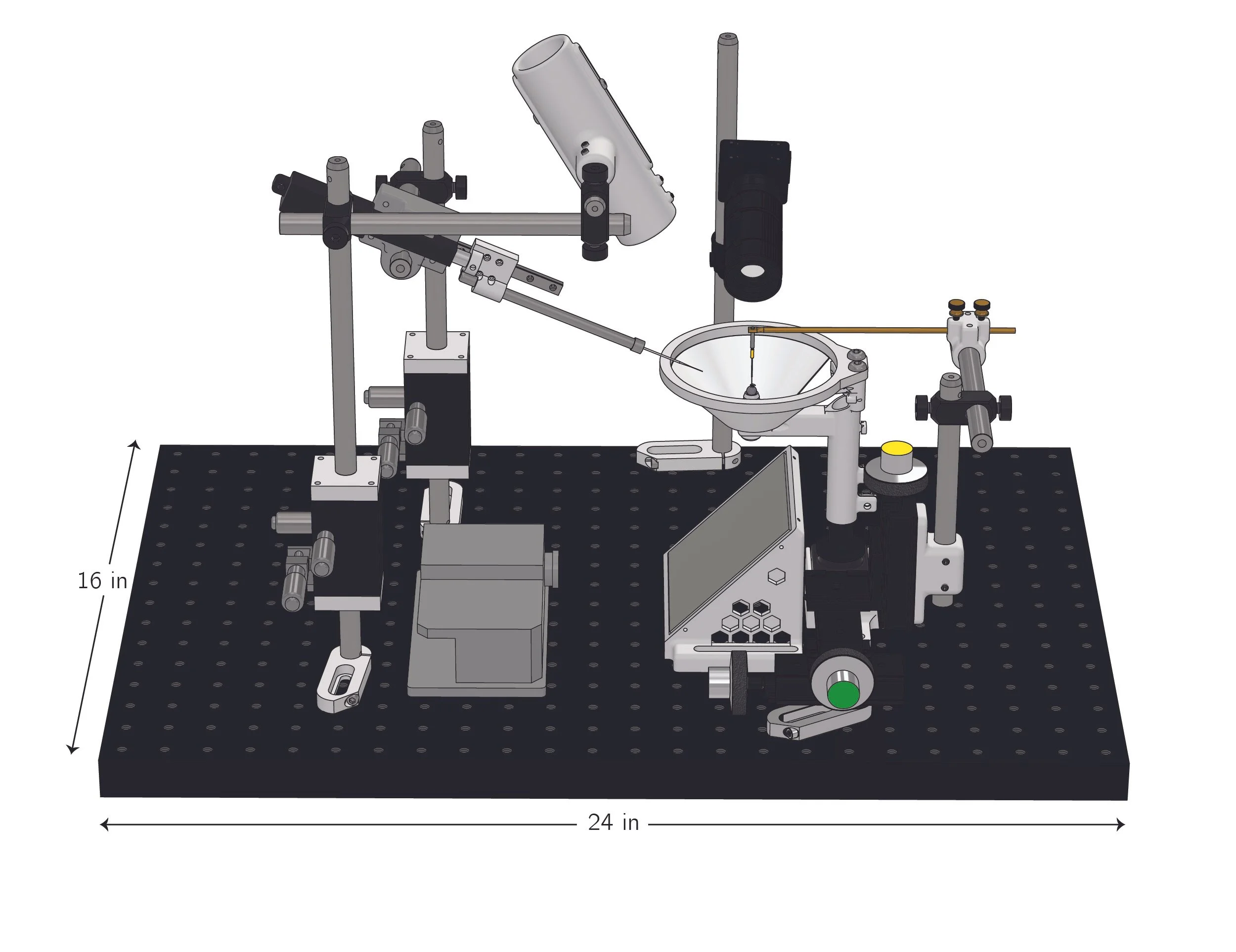

Render of the behavior rig on a 16 by 24 inch breadboard

The system is small, modular, and designed to be used in parallel. Six fit together on a two by four foot footprint.

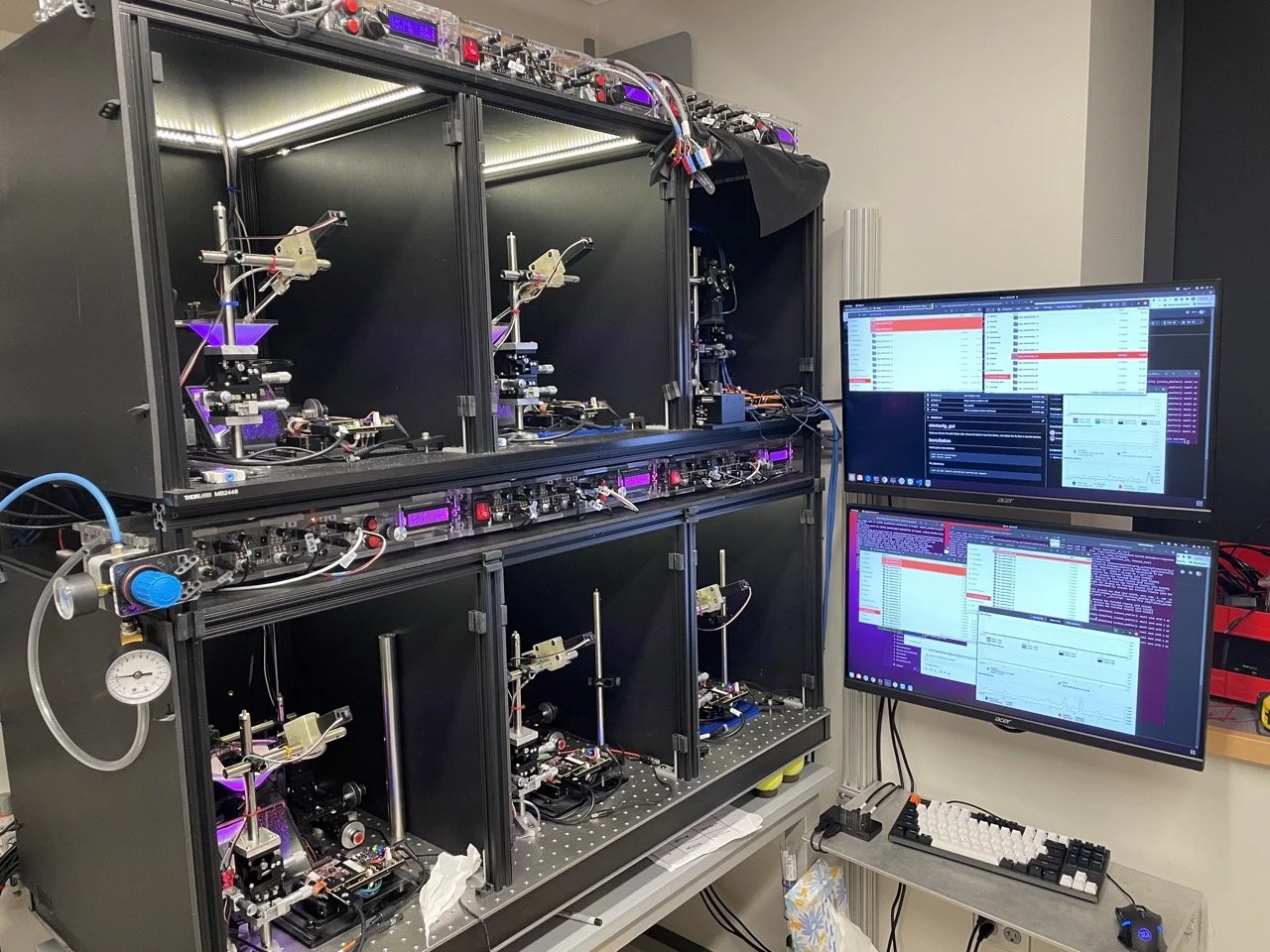

Six behavior rigs installed in a two-level enclosure beside monitors

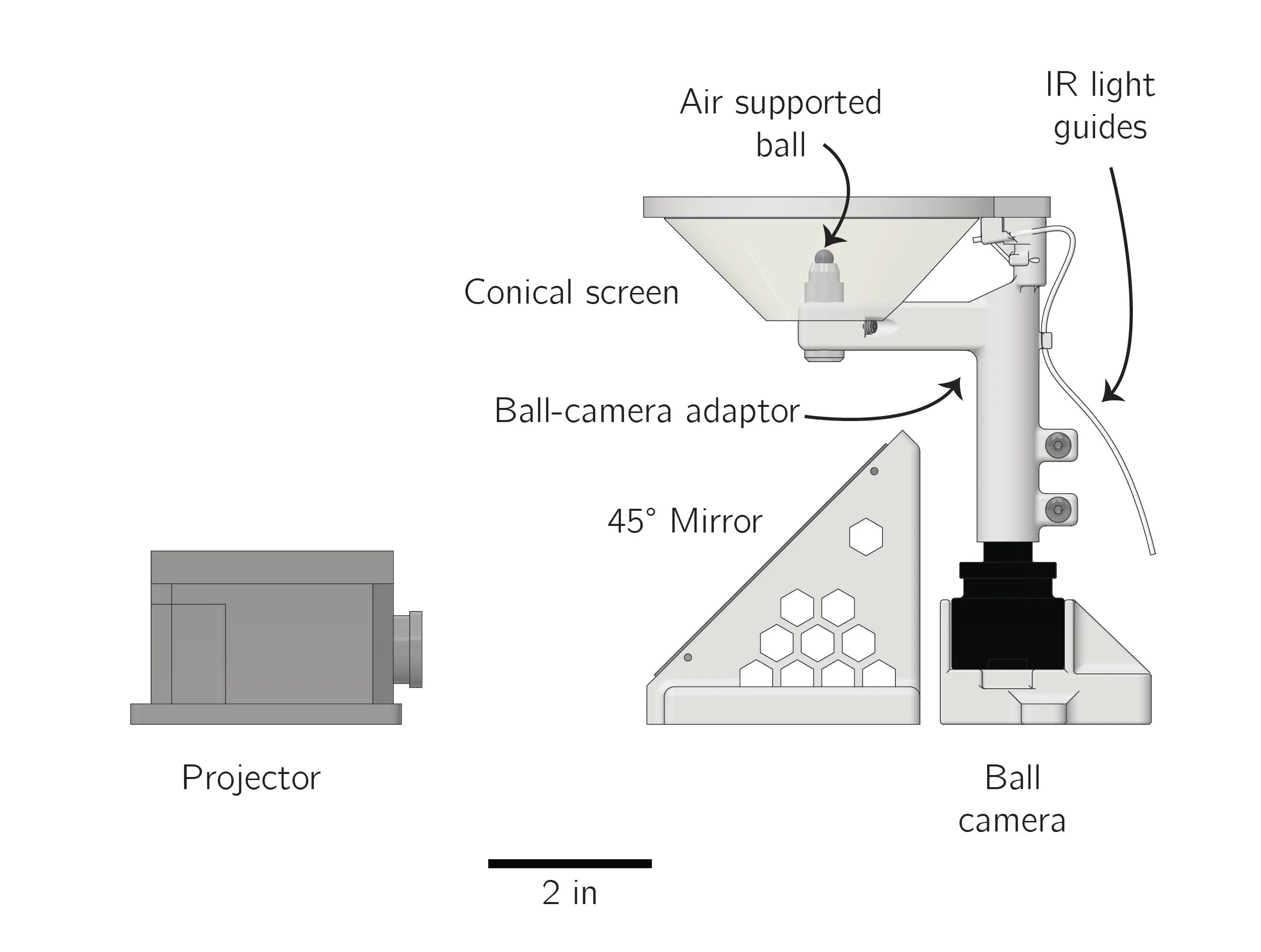

Diagram of one rig: projector, 45° mirror, conical screen, air-supported ball, ball camera and IR light guides — A projector displays the virtual world on a panoramic conical display. The fly walks on an air supported ball, and a camera tracks its movements to update the virtual world.

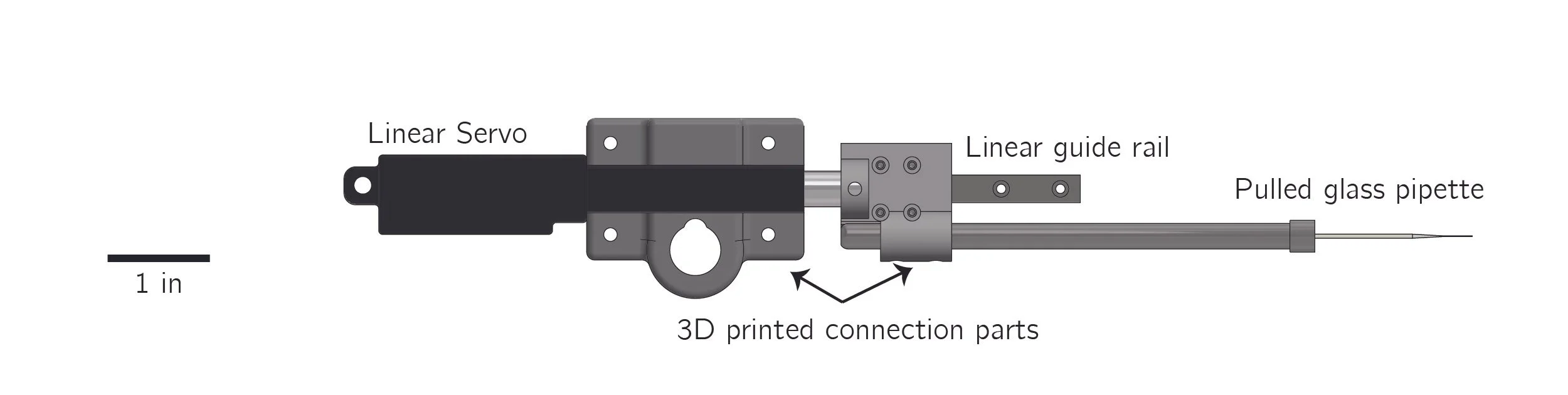

A custom feeding system reliably delivers hundreds of nL scale drops of sucrose solution to feed the fly over the course of the experiment

Diagram of the feeding system
